A single beam spectrophotometer is an analytical instrument used to measure the absorbance or transmittance of light by a sample at a specific wavelength. It operates using a single light path, where measurements of the blank and sample are taken separately, making it simple, cost-effective, and suitable for routine laboratory analysis.
Pricing is available on request only. Send us your requirements and we will respond with lead time, shipping, and compliance details.

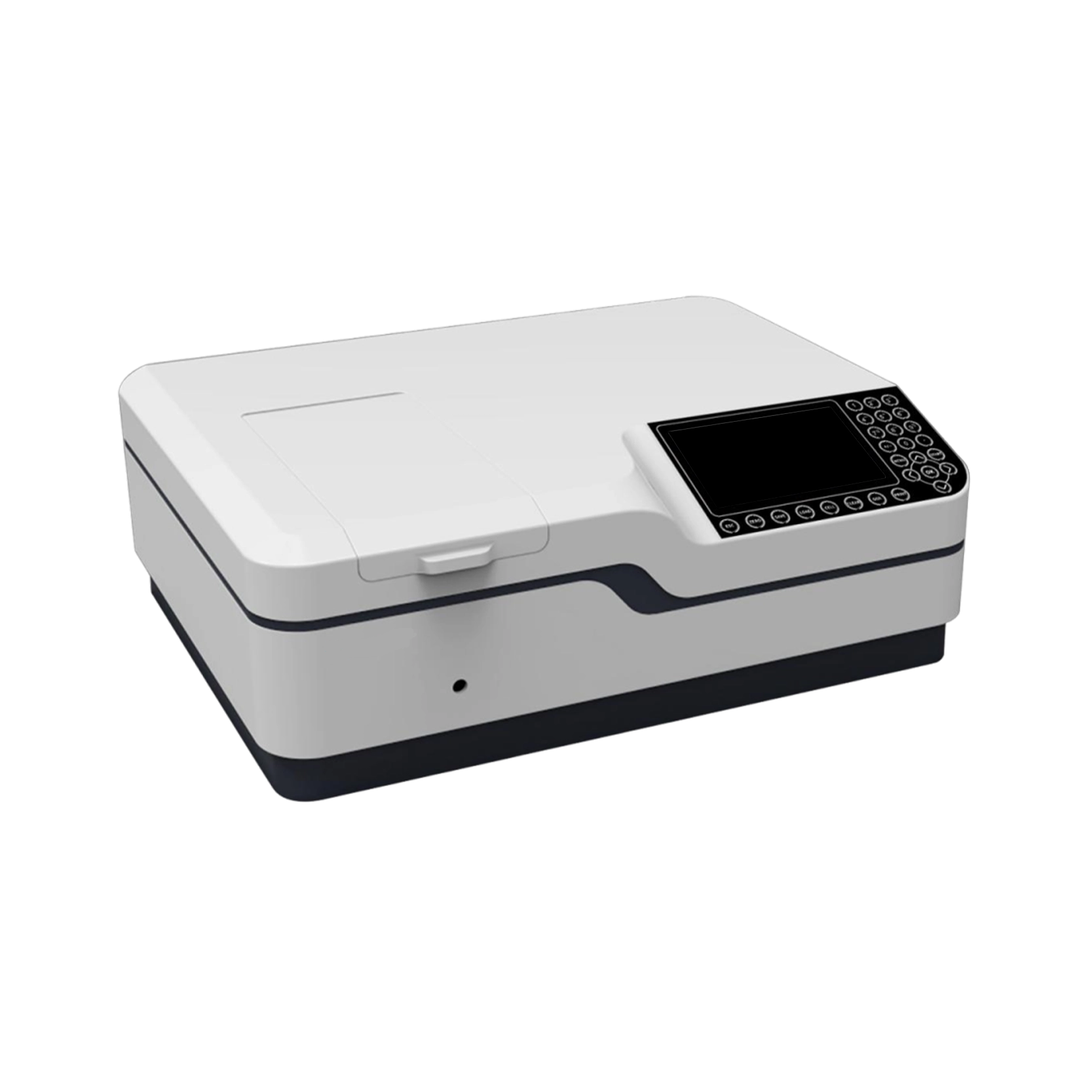

The Single Beam UV-Vis Spectrophotometer BV-5WL operates across a wavelength range of 190–1100 nm. It features adjustable spectral bandwidth options of 0.5, 1, 2, 4, and 5 nm, providing flexibility for a wide range of applications. Equipped with an advanced silicon photodiode detector, it delivers high sensitivity and stable, accurate measurements. The device also includes large in-built memory for storing test data and calibration curves. This spectrophotometer is widely used for both quantitative and qualitative analysis in biological and clinical research.
The BV-5WL Single Beam UV-Vis Spectrophotometer is a versatile instrument for laboratories and industrial applications. It supports photometric analysis, kinetics, spectrum scanning, DNA/protein testing, multi-wavelength measurements, as well as applications in drug formulation, environmental monitoring, and toxicology studies.
| Specification | Details |
|---|---|
| Wavelength Range | 190 to 1100 nm |
| Spectral Bandwidth | 0.5, 1, 2, 4 and 5 nm |
| Wavelength Setting | Automatic |
| Optical System | Single Beam, Grating 1200 lines/ mm |
| Wavelength Accuracy | ± 0.1nm at 656.1 nm, ± 0.3 nm at all |
| Wavelength Reproducibility | Up to 0.1 nm |
| Photometric Accuracy | ±0.2% T (0 to 100% T), ±0.002 A (0 to 0.5A), ±0.004 A (0.5 to 1A) |
| Photometric Repeatability | Up to 0.15% T (0 to 100% T), 0.001 A (0 to 0.5 A), 0.002 A(0.5 to 1 A) |
| Photometric Range | 0 to 200% T, -0.3 to 3 A, 0 to 9999 C |
| Stray Light Up to | 0.03% T at 220 nm, 360 nm |
| Stability | ± 0.0005 A/h at 500 nm |
| Baseline Flatness | ±0.001 A |
| Noise | 0.0005 A at 500 nm |
| Work Mode | T, A, C, E |
| Scanning Speed | Hi, Med, Low (Max. 3000 nm/min) |
| Display | 7-inches Colour Screen |
| Light Source | Deuterium and tungsten lamp |
| Detector | Silicon Photodiode |
| Cuvette Holder | 10 mm manual 4-cell holder |
| Output | USB drive, USB host, RS232 |
| Power Supply | AC 110 to 220V 50 to 60Hz |
| Dimensions | 815 × 660 × 395 mm |
| Gross Weight | 28kg |
